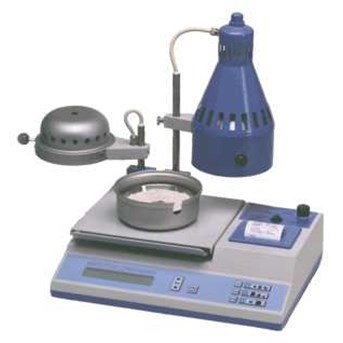

EXOTECH Moisture Analyzers UX 2031D Gravimetric Moisture Analyser with Halogen and Quarts Heat source

www.exotek-instruments.se Rugged and accurate sampling for almost all solid and liquid substanc - es. Suitable for laboratory as well as production applications. A micro processor controlled weight loss dehydration method of moistu - re analysis offers accurate and effi - cient results. This process uses in - frared drying and continuous weight loss measurement. Features: Easy handling Pre-heating mode “ Pre-Flash” for very moist materials. Sensitivity adjustment for the scale depending on the am - bient conditions Cost savings through reusable stainless steel bowls. Standard interface V24/ RS 232, additional special accessori - es such as integrated or separate printers. Software to export data to Microsoft Excel © . Elegant but also functional design T echnical data for the moisture analyzer type ULTRA X 2011D: WEIGHING RANGE: Selectable 60 / 120 / 310 g RESOLUTION: 0, 001 g / 0.002 / 0.005 g MEASURED VALUES: % Decrease of weight in grams % dry material increase of weight in grams % dry substance actual sample weight gram solids per kg TIMER: Free programmable 0...90 min. in 10 second steps for time depending drying KONSTA STOP: Automatic drying until weight is constant. Selectable in 3 different modes: start mea - suring, measuring in intervals, weight loss/ measured during intervals. HIGH-FLASH: Automatic, variable pre-heater to shorten the drying time up to 50% depending on the material or to reach the set-point temperature much earlier. TEMPERATURE: Selectable either free variable or with 100 steps range approx. 40...180° C with light heater, or up to 360° C with quartz heater POWER FROM HEATER: 250 watts ( infrared light heater) 375 watts ( quartz dark heater) SAMPLE WEIGHT: Minimum 1 g, recommended minimum 4 g SAMPLE VOLUME: Max. 95 cm3 DRYING BOWL: Stainless steel, diameter 110 mm DATA OUTPUT: Interface V24/ RS 232 DATA SIGNALS: All weight and measuring data in GLP-format with start time and variable interval print out. Selectable date, time, total measuring time, type of sample POWER SUPPLY: 230 V ( 115 V with separate transformer) + / - 15% , 48-63 Hz POWER CONSUMP.: 275 VA or 400 VA DIMENSIONS: 360 x 280 x 415 ( l x w x h) mm WEIGHT: Approx. 8, 7 kg SUPPLY: Reference weight, 2 measuring bowls from stainless steel, pincher for the bowls, lead wire
